In the competitive landscape of LED lighting design, maximizing printed circuit board (PCB) efficiency is crucial. BELEKS SMD PCB Terminal Blocks deliver a robust and versatile interconnection solution that addresses key challenges for global designers and manufacturers. Engineered for performance and assembly efficiency, these SMD terminal blocks are the ideal choice to streamline your production process and enhance LED module reliability.
Engineered to Solve Key LED Design Challenges
BELEKS SMD connector series provide significant advantages for both your production line and end products:
- Eliminated Shadowing: The low-profile white housing minimizes on-board shadowing, ensuring consistent, unobstructed light output from LED modules.
- Simplified Wiring: Push-in termination for solid conductors accelerates assembly. Push-button versions facilitate easy connection of fine-stranded conductors and tool-less wire release, simplifying maintenance and rework.
- Design Flexibility: With one- to three-pole versions (L01-N1P, L01-N2P, L01-N3P), create terminal strips of varying lengths without pole loss, offering exceptional layout versatility.
- Cost Reduction: A strategic reduction in required variants lowers inventory complexity and production costs.
- Streamlined Automation: Supplied in tape-and-reel packaging, BELEKS terminals enable seamless integration into high-speed SMT lines, boosting manufacturing efficiency.
Spotlight on the L01 Series: Maximum Performance in Miniature Footprint

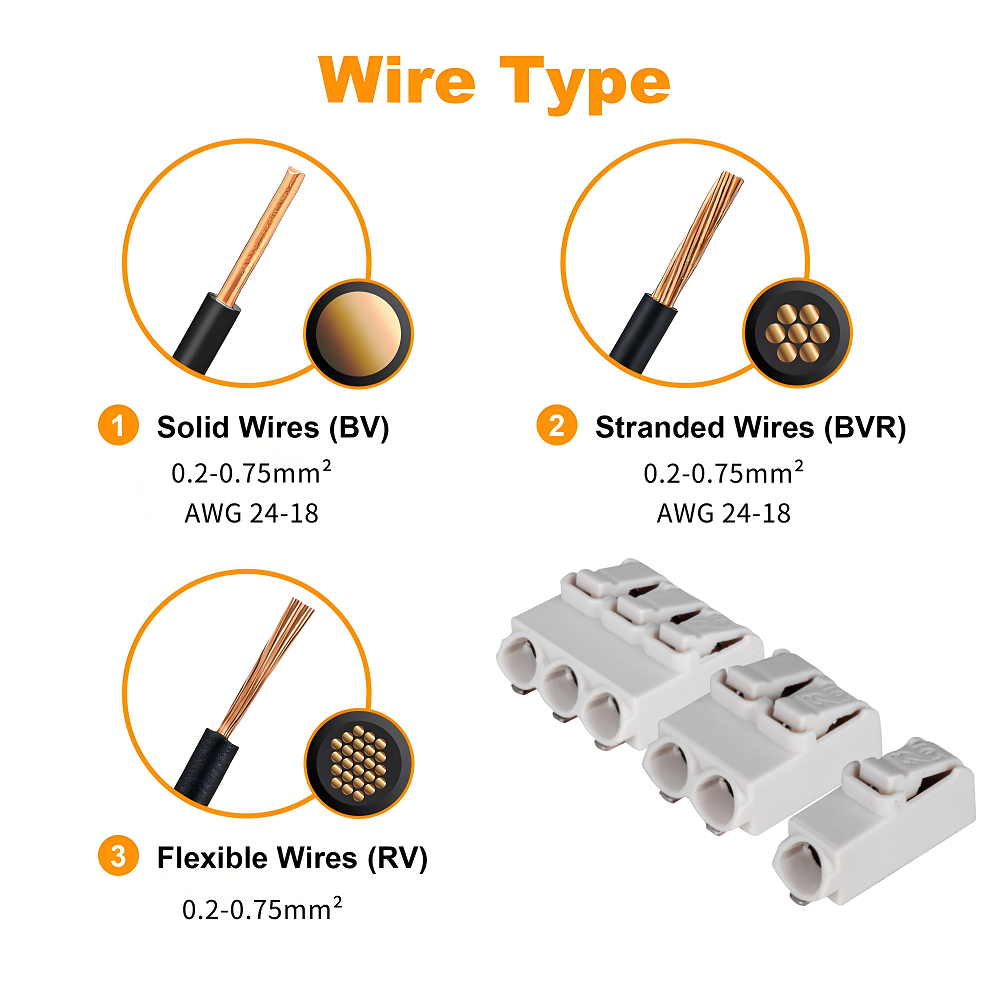

The L01 Series exemplifies BELEKS' commitment to innovation. At just 5.5 mm tall, it offers superior termination capability in an ultra-compact footprint. Reliably accommodating conductor cross-sections from 24 to 18 AWG (0.2 to 0.75 mm²), it supports solid, stranded, and flexible wires.
Key Advantages of the L01 Series:
- Space-Saving Design: Handles maximum conductor cross-sections in minimal installation space.
- Enhanced Illumination: Compact design critically reduces PCB shadowing.
- Versatile Connectivity: Compatible with solid, stranded, and flexible conductors.
- Proven Reliability: Features push-in technology for solid wires.
- Tool-Rewirable: After reflow soldering to the PCB, an operating tool allows for easy connection of fine-stranded wires and disconnection of all conductor types. This system provides a flexible, economical alternative to direct soldering of wires.

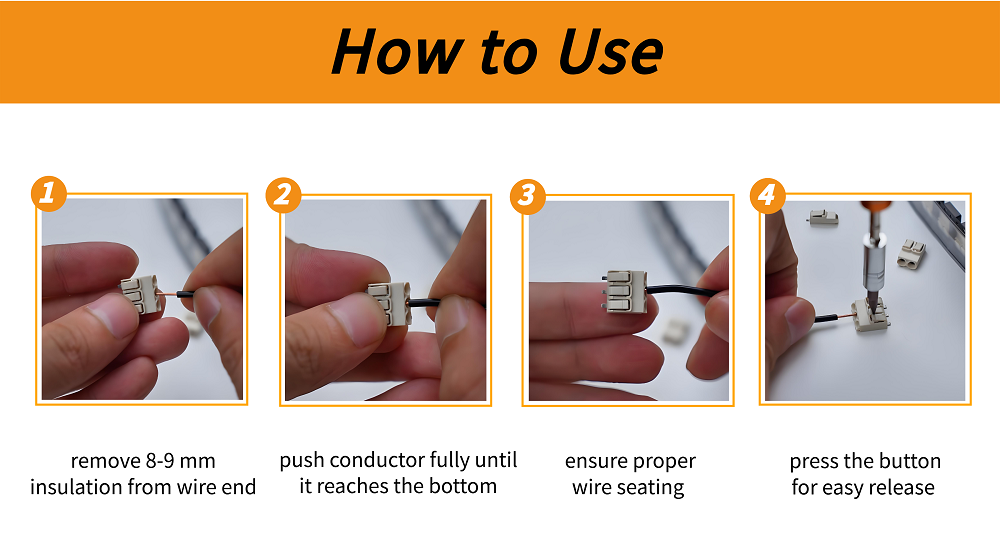

How to Use BELEKS SMD PCB Wire Connectors in 4 Steps
- Strip: Remove 8-9 mm of insulation from the wire end.
- Insert: Push the bare conductor fully into the terminal until it bottoms out.
- Verify: Ensure the wire is properly seated for a secure connection.
- Release (if needed): Press the button for easy wire release, making the connection fully rewirable.
Global Compliance & Packaging
BELEKS terminal blocks meet international standards with the following ratings:
- Rated Voltage: Up to 160V IEC/EN; 300V/600V UL
- Rated Current: 9A
- Flammability Rating: Polyamide 46 housing, UL 94V-0 certified
- Packed in high-quantity cartons (e.g., 13,500 pieces for L01-N1P), they efficiently support large-scale manufacturing demands.
Connect with Confidence
For LED lighting designers seeking a reliable, compact, and automation-ready wiring solution, BELEKS SMD PCB Terminal Blocks deliver global performance. By reducing assembly time, eliminating shadowing, and cutting production costs, they empower you to build better light—faster.
